Responsive web design - basic

Set the viewpoint

在 head 必须有 meta viewport tag -> give the browser instructions on how to control the page’s dimensions and scaling
一般 desktop scree size -> 980px

1
2
3
4
5
6
7
8
9


<!DOCTYPE html>
<html lang="en">
  <head>
    …
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    …
  </head>
  …
</html>

width=device-width instructs the page to match the screen’s width in device-independent pixels -> This allows the page to reflow content to match different screen sizes, whether rendered on a small mobile phone or a large desktop monitor
value initial-scale=1 instructs browsers to establish a 1:1 relationship between CSS pixels and device-independent pixels regardless of device orientation, and allows the page to take advantage of the full landscape width

Ensure an accessible viewport

minimum-scale
maximum-scale
user-scalable

–> When set, these can disable the user’s ability to zoom the viewport, potentially causing accessibility issues. Therefore we would not recommend using these attributes

Size to centent to the viewport

imgaes

1
2
3
4


img {
  max-width: 100%;
  display: block;
}

max-width of 100%
- cause the image to shrink to fit the space it has
- because the max-width, rather than the width is 100%, the image will not stretch larger than its natural size
  - width:100% : 100%是将所有指定元素的宽度拉伸或收缩到和父元素的宽度一致
  - max-width:100% : 如果 img 宽度大于 div 宽度，img 就显示 div100%宽度，否则就显示 img 自身的宽度
  - 很多适合 width 和 max-width 是配合使用的：比如设置一个标签，width 是（父元素的）80%但是 max-width 不能超过1200px，那么这个标签就有了一个最基本的可缩放特性

layout

By using percentages for the widths, the columns always remain a certain percentage of the container. This means that the columns become narrower, rather than creating a scrollbar
Modern CSS layout techniques such as Flexbox, Grid Layout, and Multicol make the creation of these flexible grids much easier

Use CSS media queries for responsiveness

1
2
3


@media print {
/* print styles go here */
}

For responsive web design, we are typically querying the features of the device in order to provide a different layout for smaller screens, or when we detect that our visitor is using a touchscreen

media queries based on viewport size

width (min-width, max-width)
height (min-height, max-height)
orientation
- 屏幕方向 (orientation) 可用于测试视口 viewport 的横纵方向
- portrait -> 处于纵向高度大于宽度
- landscape -> 处于横向宽度大于高度
aspect-ratio
- aspect-ratio css 媒体属性可以用来测试 viewport 的宽高比
- 宽高比属性被指定为 ratio 值来代表 viewport 的宽高比
- 其为一个范围，这意味着你可以使用 min-aspect-ratio 和 max-aspect-ratio 分别查询最小和最大的值

media queries based on device capability

hover
pointer
any-hover
any-pointer

How to choose breakpoints

pick major breakpoints by starting small, then working up

Design the content to fit on a small screen size first, then expand the screen until a breakpoint becomes necessary. This allows you to optimize breakpoints based on content and maintain the least number of breakpoints possible
慢慢拉大，查询 breakpoint 点，insert breakpoint 点

1
2
3
4
5


@media (max-width: 600px) {
}

@media (min-width: 601px) {
}

Inside the media query for a max-width of 600px, add the CSS which is only for small screens. Inside the media query for a min-width of 601px add CSS for larger screens

pick minor breakpoints when necessary

由小至大

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


@media (min-width: 360px) {
  body {
    font-size: 1em;
  }
}

@media (min-width: 500px) {
  .seven-day-fc .temp-low,
  .seven-day-fc .temp-high {
    display: inline-block;
    width: 45%;
  }

  .seven-day-fc .seven-day-temp {
    margin-left: 5%;
  }

  .seven-day-fc .icon {
    width: 64px;
    height: 64px;
  }
}

@media (min-width: 700px) {
  .weather-forecast {
    width: 700px;
  }
}

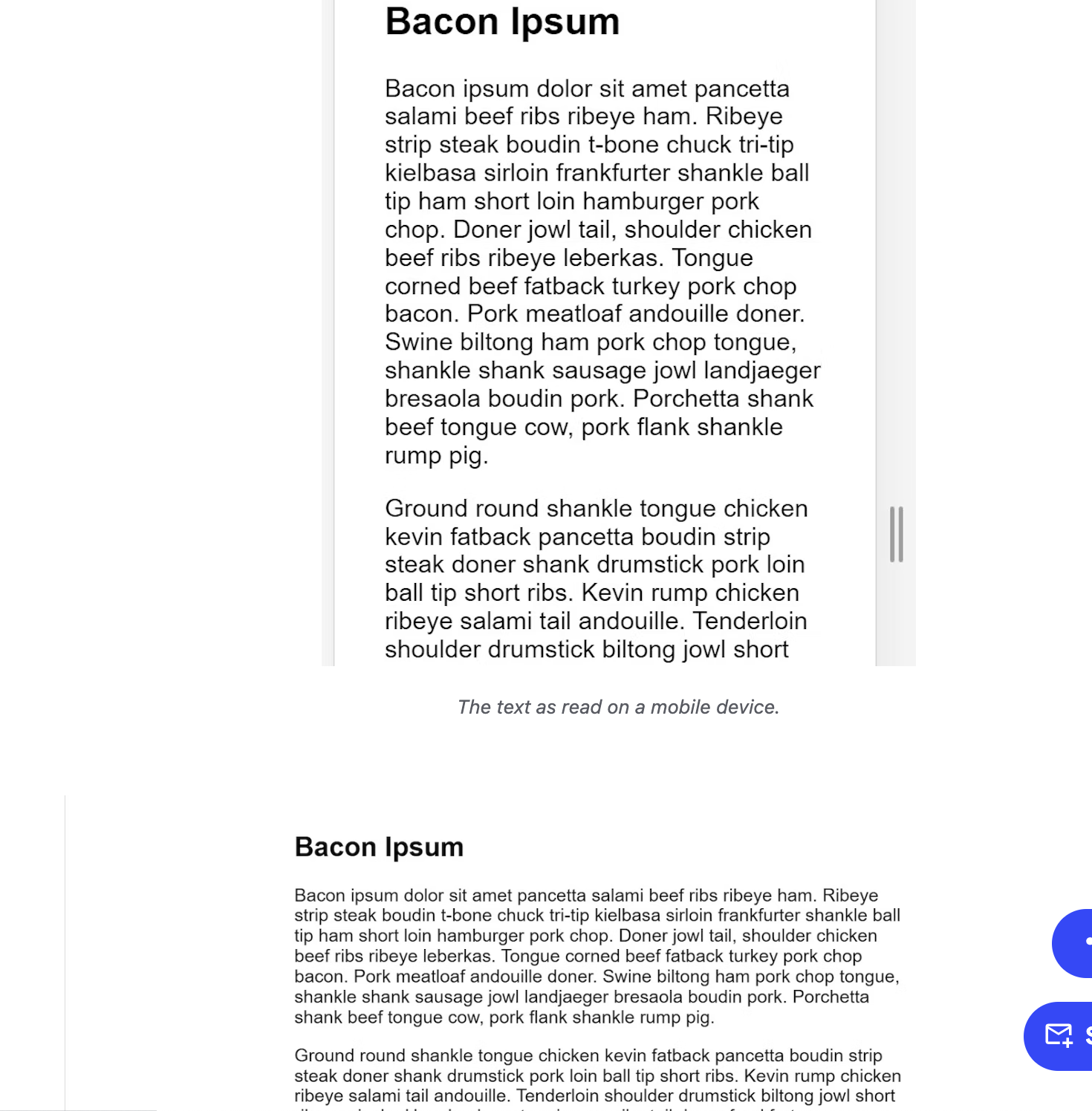

Optimize text for reading

Classic readability theory suggests that an ideal column should contain 70 to 80 characters per line (about 8 to 10 words in English). Thus, each time the width of a text block grows past about 10 words, consider adding a breakpoint.

Let’s take a deeper look at the above blog post example. On smaller screens, the Roboto font at 1em works perfectly giving 10 words per line, but larger screens require a breakpoint. In this case, if the browser width is greater than 575px, the ideal content width is 550px.

1
2
3
4
5
6
7


@media (min-width: 575px) {
  article {
    width: 550px;
    margin-left: auto;
    margin-right: auto;
  }
}

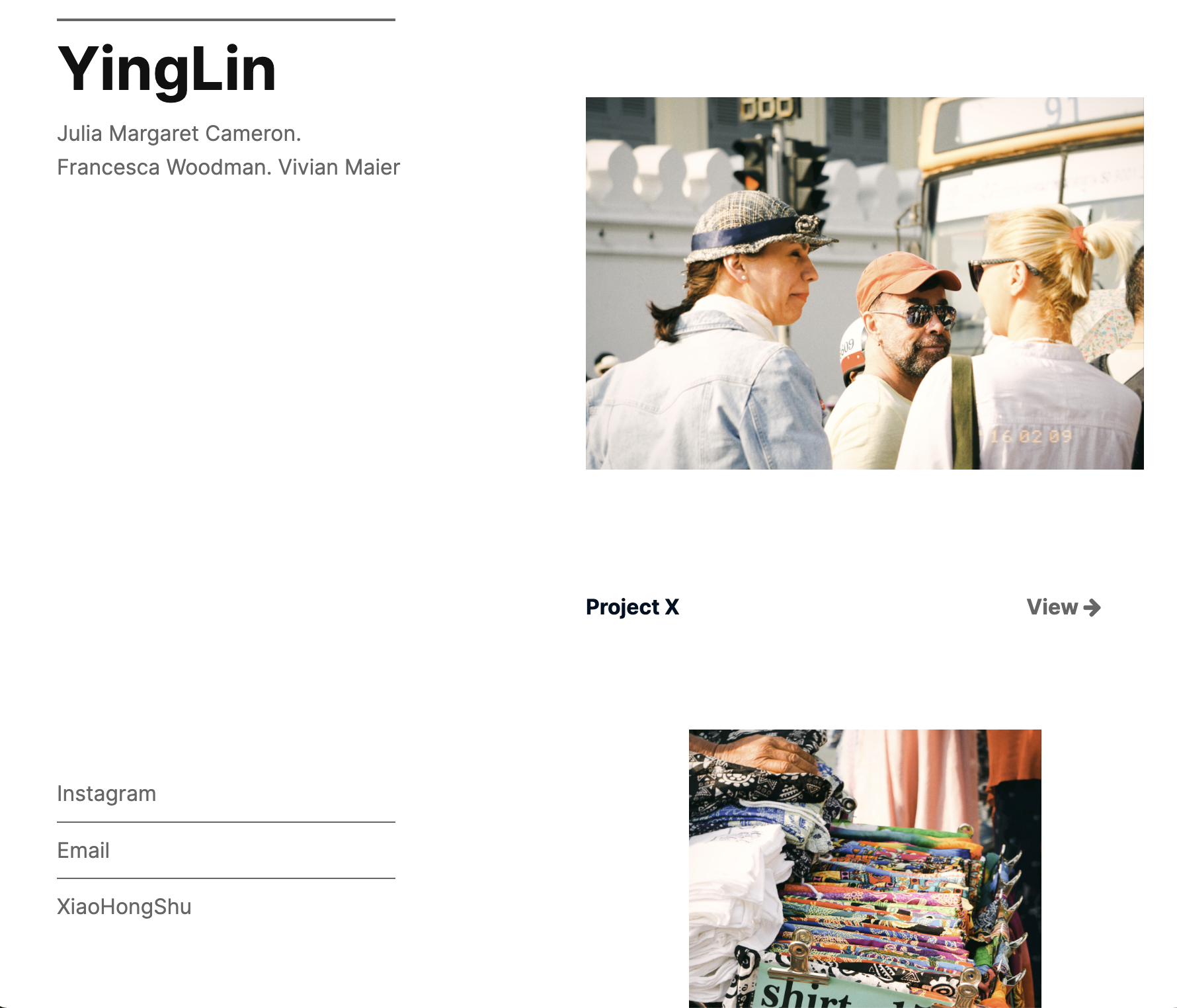

固定侧边栏

整体布局 flex / direction：row (aside-container + content-container)
aside-container

1
2
3
4
5
6


.aside-container {
	display: flex;
	width: 100%;
	flex-direction: column;
	max-height: 100vh;
}

content-container

1
2
3
4


.content-container {
	width: 100%;
	max-height: 100vh;
}

media query

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37




@media screen and (min-width: 50.625rem) {
	.flex-container {
		display: flex;
		flex-direction: row;
	}

	.aside-container {
		display: flex;
		width: 20rem;
		flex-direction: column;
		margin-left: 1rem;
	}



	.content-container {
		width: calc(100% - 20rem);
		overflow: auto;
	}
}

@media screen and (min-width: 75rem) {

	.aside-container {
		width: 22rem;
		margin-left: 1rem;
	}


	.content-container {
		width: calc(100% - 20rem);
		overflow: auto;
	}

}

匹配 rem 到 px

vscode plugin 可以自动转换 - px to rem
chrome 的默认字体 font 为 16px

flex 一些写法意思

flex 项目的动态尺寸

现在让我们回到第一个例子，看看是如何控制 flex 项占用空间的比例的

第一步，将以下规则添加到 CSS 的底部：

1
2
3


article {
  flex: 1;
}

这是一个无单位的比例值，表示每个 flex 项沿主轴的可用空间大小
本例中，我们设置元素的 flex 值为 1，这表示每个元素占用空间都是相等的
占用的空间是在设置 padding 和 margin 之后剩余的空间
它是一个比例

现在在上一个规则下添加：

1
2
3


article:nth-of-type(3) {
  flex: 2;
}

现在当你刷新，你会看到第三个元素占用了两倍的可用宽度和剩下的一样——现在总共有四个比例单位可用
前两个 flex 项各有一个，因此它们占用每个可用空间的 1/4
第三个有两个单位，所以它占用 2/4 或者说是 1/2 的可用空间

你还可以指定 flex 的最小值。尝试修改现有的 article 规则

1
2
3
4
5
6
7


article {
  flex: 1 200px;
}

article:nth-of-type(3) {
  flex: 2 200px;
}

这表示“每个 flex 项将首先给出 200px 的可用空间，然后，剩余的可用空间将根据分配的比例共享”

flex 三项简写

flex-grow / flex shrink / flex-basis 简写

默认值为 0 1 auto -> 表示元素尺寸不放大会收缩
flext: 0 0 auto

flex:0 0 auto 表示元素尺寸不会拓展也不会收缩，再加上 flex-basis:auto 表示固定尺寸由内容决定，由于元素不具有弹性，因此，元素内的内容不会换行，最终尺寸通常表现为最大内容宽度

自己使用 flex: 0 0 40rem

表示 content-container 尺寸有空余空间不放大不会收缩，并且在分配多余空间之前，项目占据的主轴空间（main size）为 40rem

background-img 自适应

1
2
3
4
5
6
7
8
9


/* 元素是div */
.project1 {
  width: 100%;
  height: 25rem;
  background-image: url(https://s2.loli.net/2023/04/02/keuVaJgbymrGj6E.jpg);
  background-repeat: no-repeat;
  background-size: contain;
  background-position: center;
}
